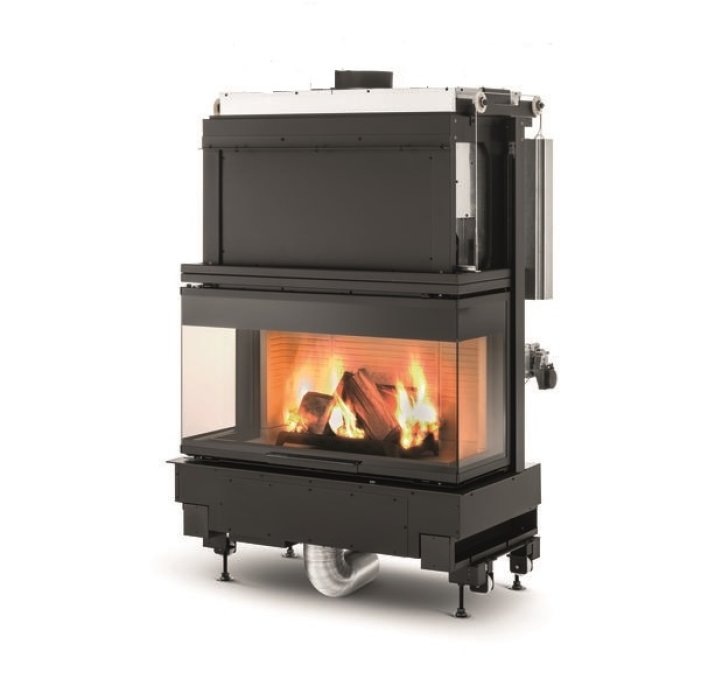

• Ecomonoblocco WT 16:9 3D
    Ecomonoblocco WT 16:9 3D Ecomonoblocco WT 16:9 3D Ecomonoblocco WT 16:9 3D


• monobloc with panoramic view of the fire on three sides
• firebox made of Thermofix®
• sturdy sliding door system that makes the door glide smoothly open
• dual Combustion system
• removable ash pan
• by-pass valve expels flue gases when the door is opened
• accurate combustion management and control by adjusting primary/secondary air
• integral O2Ring technology reduces production of harmful particulates
• the combustion air can be taken directly from outdoors
• aesthetic cast iron firewood holder supplied as standard
• available in different configurations
N: natural version

Technical Specifications
Energy class A+
External Dimentions - Weight 108x71x164 cm - 450 kg
Level of environmental performance ****
Efficiency at nominal heat output 85,4%
Nominal heat output 12,5 KW
Total Thermal Power 14,6 KW
Hourly wood consumption 3,54 Kg/h
Exhaust outlet fitting Ø 20 cm

Ecomonoblocco WT 16:9 3D

108x71x164 cm - 450 kg
Energy class A+
  • Ecomonoblocco WT 16:9 3D N12
  • Ecomonoblocco WT 16:9 3D V12
  • Ecomonoblocco WT 16:9 3D V12EPLUS
  • Product Inquiry Form

    Tags: Ecomonoblocco, WT, 16:9, 3D, N12, Thermofix, Energy, Fireplaces, Heaters, Three, Sided, PALAZZETTI
